Invoice and freight document extraction stack for Logistics

What should a logistics team use to extract fields from invoices, bills of lading and freight documents?

ZBS editorial starting point. Start with Docling for conversion, Claude API with citations for schema-bound extraction and LangGraph for validation and human exceptions.

Operations receives structured fields with source passages and an exception queue instead of an untraceable document summary.

Editorial starting point

Cited document extraction

A concrete starting configuration that keeps source facts, model output and operational authority separate.

Choose this when: Document variety is high and every accepted field needs a source trail.

Document Docling observed

Convert mixed freight files. The public quickstart documents local conversion and structured export.

Limit: Scans, unusual tables, annotations and source metadata require a representative parsing test.

Evidence: source 1
Extraction Claude API with citations observed

Extract fields with cited passages. Native citations expose which supplied source passages support an answer.

Limit: A correct source link does not prove the interpretation or decision is correct.

Evidence: source 1
Workflow LangGraph observed

Validate fields and route exceptions. Stateful workflow steps keep model output separate from acceptance and operational action.

Limit: Policy, persistence, access control and recovery remain application responsibilities.

Evidence: source 1

Private / local

Controlled reasoning path

Keep parsing, retrieval or model inference in controlled infrastructure while retaining the same source-of-truth and approval rules.

Choose this when: Sensitive inputs cannot be sent to an external model API and the team can operate the additional infrastructure.

Document Docling source backed inference

Convert files locally. The public quickstart documents local conversion and structured export.

Limit: Scans, unusual tables, annotations and source metadata require a representative parsing test.

Evidence: source 1
Retrieval pgvector source backed inference

Store searchable source chunks. It keeps vector search beside relational metadata and access filters in PostgreSQL.

Limit: Approximate retrieval can miss results and needs recall measurement against an exact baseline.

Evidence: source 1
Extraction vLLM source backed inference

Serve a local extraction model. It provides a documented self-operated model-serving layer.

Limit: Serving a model does not prove its task accuracy, safe tool use or secure operation.

Evidence: source 1
Workflow LangGraph source backed inference

Enforce validation and approval. Stateful workflow steps keep model output separate from acceptance and operational action.

Limit: Policy, persistence, access control and recovery remain application responsibilities.

Evidence: source 1

Budget alternative

Lower-cost external model path

Keep the workflow and source integration explicit while evaluating a lower-cost model candidate on the same acceptance set.

Choose this when: External processing is acceptable and measured model spend is a leading constraint.

Document Docling source backed inference

Keep source conversion fixed. The public quickstart documents local conversion and structured export.

Limit: Scans, unusual tables, annotations and source metadata require a representative parsing test.

Evidence: source 1
Extraction DeepSeek API source backed inference

Produce candidate structured fields. It is a concrete lower-cost external model candidate for the same acceptance set.

Limit: Price alone is not task fitness; output structure, languages, availability and data terms need testing.

Evidence: source 1
Workflow LangGraph source backed inference

Run the same acceptance gate. Stateful workflow steps keep model output separate from acceptance and operational action.

Limit: Policy, persistence, access control and recovery remain application responsibilities.

Evidence: source 1

Community check

Do you agree with this starting stack?

This is a reader opinion about the whole editorial recommendation, not evidence that the stack is objectively good. Votes never change it automatically.

Loading reader votes…

Voting needs JavaScript. The recommendation and every source above remain available without it.

How the stack fits together

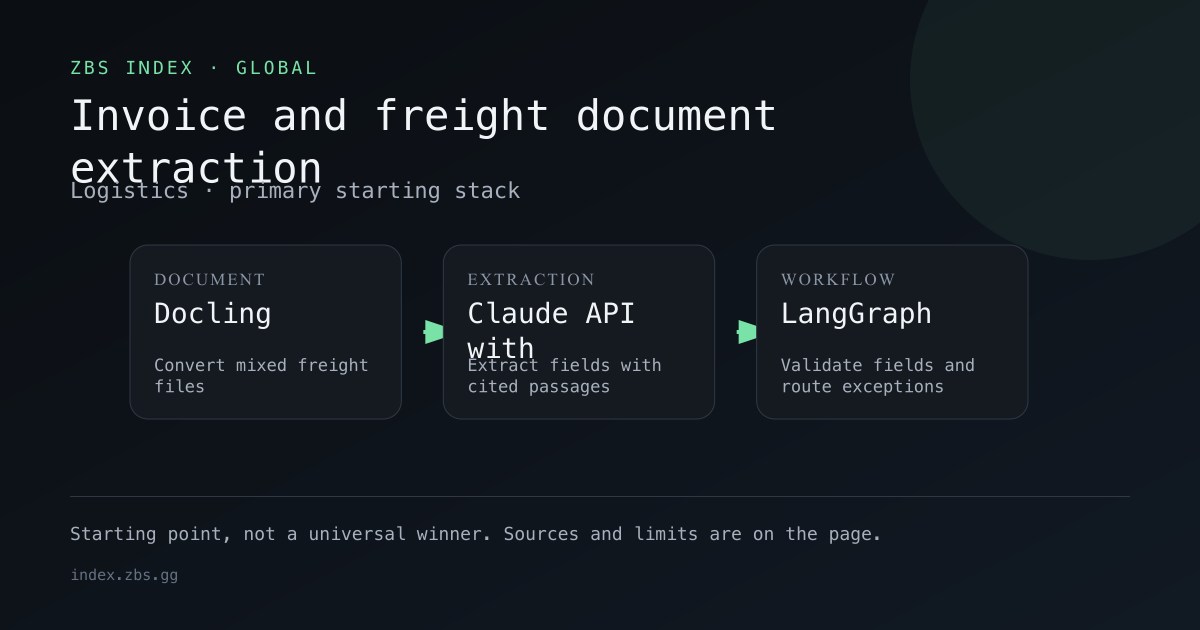

Invoice and freight document extraction workflow for Logistics, showing the primary stack components in order. — ZBS Index functional diagram generated from the cited stack revision; no third-party interface or private data is reproduced. Source, captured 2026-08-14.

Trade-offs that change the choice

Constraint	Primary	Private / local	Budget
Data boundary	The named managed APIs receive only the fields explicitly sent to them	Reasoning stays controlled; source systems may remain external	Lower cost does not make external processing private
Operational load	Lower: managed components with explicit integration points	Highest: serving, retrieval and recovery are yours	Moderate: custom workflow plus external APIs
Decision authority	Risky writes and low-confidence cases require a deterministic or human gate	The same gate is required regardless of hosting	Lower model price does not relax the approval rule

Implementation path

1. Define the exact schema, units and source-passage rule.

2. Freeze clean, scanned, tabular and ambiguous examples.

3. Reject low-confidence and arithmetically inconsistent fields.

4. Measure field accuracy, citation accuracy, review time and cost.

Known limits

No generic model is assumed to understand every carrier layout.

Accounting, tax and customs validation remain separate.

No product on this page is a universal winner; the configuration still needs a task-specific acceptance test.

EU and US routes stay consolidated with Global until evidence changes the answer.
